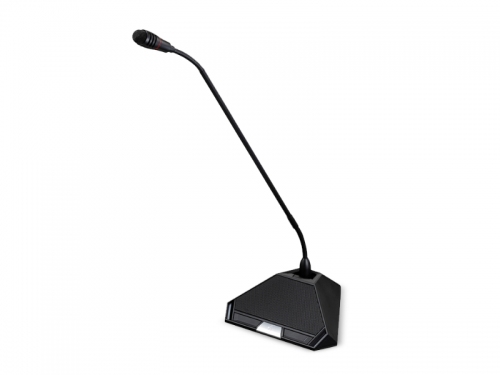

TOA DELEGATE UNIT WITH MICROPHONE DAN BATTERY - Z-TS822

Power Source

Supplied from optional lithium-ion battery or AC adapter

Current Consumption

Max. 390 mA

Infrared Emitter / Detector

Wavelength

870 nm (AM: Brightness modulation)

Modulation Method

Frequency modulation

Carrier Frequency

Transmission:
Audio channel 1: 7.35 MHz
Audio channel 2: 8.10 MHz
Audio channel 3: 8.55 MHz
Audio channel 4: 9.15 MHz
Control channel: 6.45 MHz
Reception: Audio channel: 1.95 MHz

Covering Range

7 m (22.97 ft) radius

Input

Microphone terminal: XLR-4-31 type

Output

Monitor speaker: 8 Ω, 0.2 W
Headphone: φ3.5 mm mini Jack (3P:monaural) × 2

LED Indicator

Speech indicator, Power indicator

Function

Monitor volume control, Headphone volume control

Battery Life

Approx. 10 hours (when the fully-charged BP-920 or BP-900A is used with "During speech" to "Standby" ratio of 1:2)

Operating Temperature

0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)

Operating Humidity

90 %RH or less (no condensation)

Finish

Case: PC resin, black
Speaker Net: Steel plate, Black, matte finish, paint

Dimensions

205.7 (W) × 70.3 (H) × 164.2 (D) mm (8.1" × 2.77" × 6.46")

Weight

525 g (1.16 lb)

Option

Microphone: TS-923, TS-903, TS-924, TS-904 (Select either one.)
Lithium-ion Battery: BP-920, BP-900A
AC adapter: AD-0910
